Big Gator V-DrillGuide

We are offering the drill guides in sets and individually.

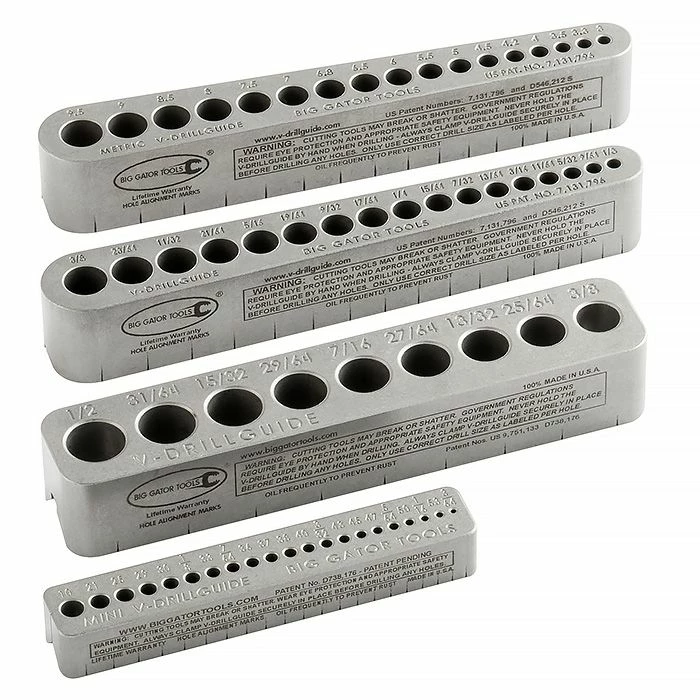

The 4-piece Set includes all four sizes:  Set includes: one Standard V-DrillGuide® -(3/8-1/2″), one Standard V-DrillGuide® -(1/8-3/8″), one MINI V-DrillGuide®, and one Metric V-DrillGuide® (3-9.5mm)

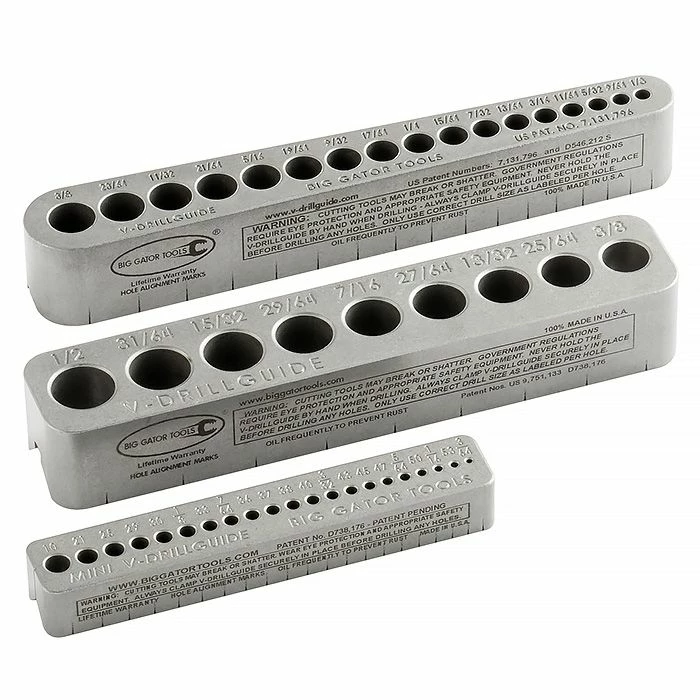

The 3-piece Set includes all three imperial versions:  Set includes: one Standard V-DrillGuide® -(3/8-1/2″), one Standard V-DrillGuide® -(1/8-3/8″), and one MINI V-DrillGuide®.

Detailed information about each guide below:

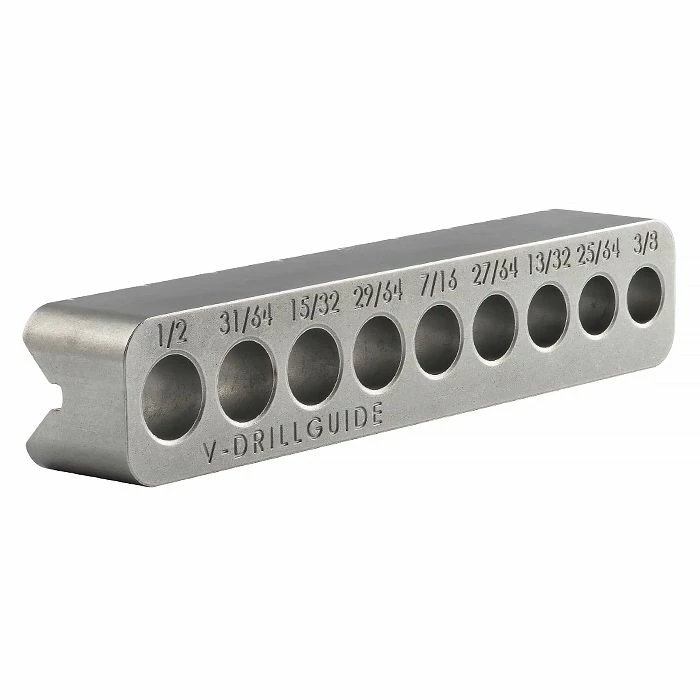

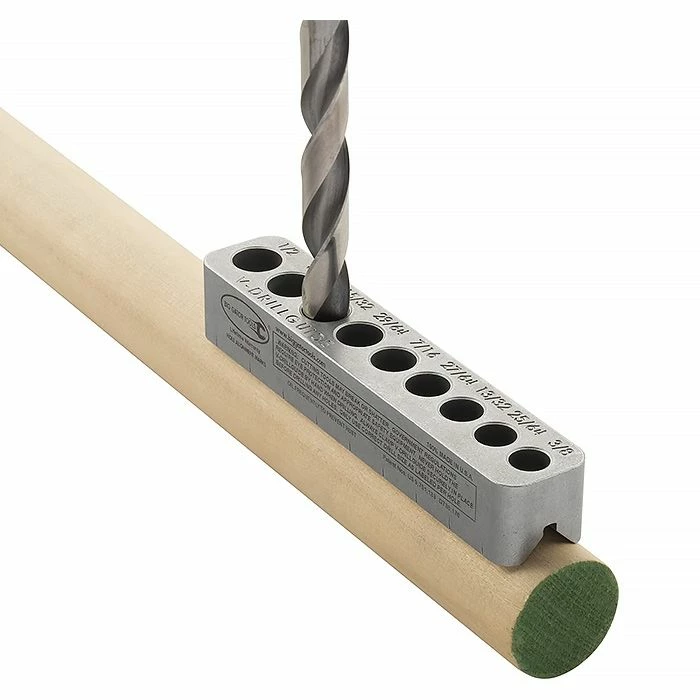

Standard V-DrillGuide® – STD2000DGNP
Drill guide is sized for drill bit sizes: 3/8 to 1/2″.  9 drill sizes. 1/64″ increments. 9 drill sizes include: 3/8, 25/64, 13/32, 27/64, 7/16, 29/64, 15/32, 31/64, 1/2″.

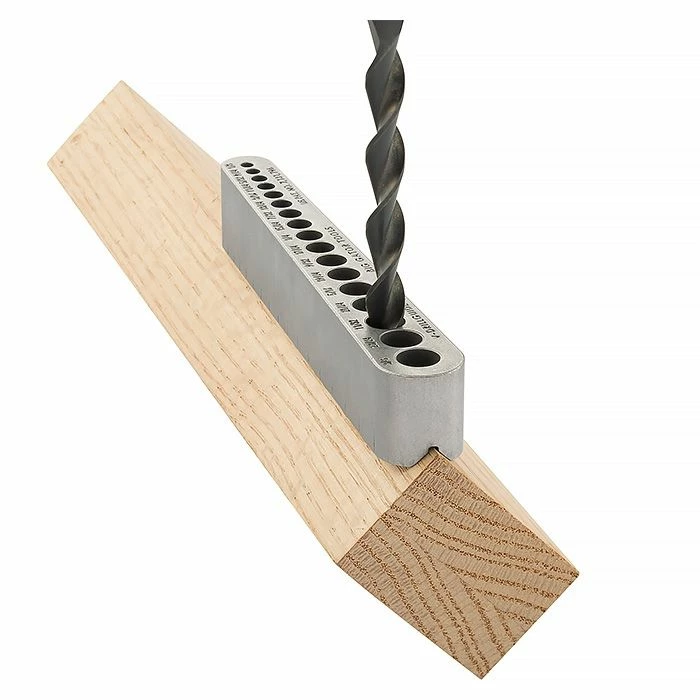

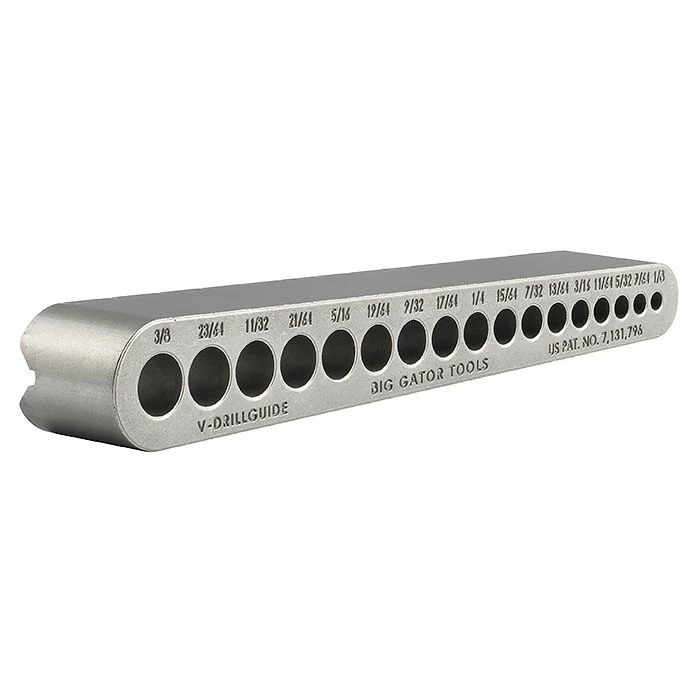

Standard V-DrillGuide® – STD1000DGNP
Drill guide is sized for drill bit sizes: 1/8 to 3/8″. 17 drill sizes – 1/64″ increments. 17 drill sizes include: 1/8, 9/64, 5/32, 11/64, 3/16, 13/64, 7/32, 15/64 1/4, 17/64, 9/32, 19/64, 5/16, 21/64, 11/32, 23/64, 3/8″.

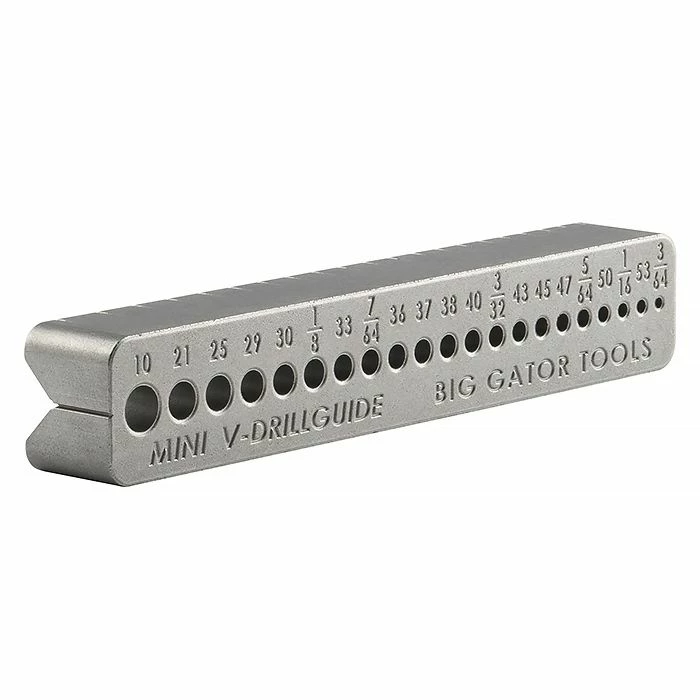

MINI V-DrillGuide® – SDGMINI
Drill guide has 21 holes: #10, 21, 25, 29, 30, 1/8″, 33, 7/64″, 36, 37, 38, 40, 3/32″, 43, 45, 47, 5/64, 50, 1/16″, 53, 3/64″.

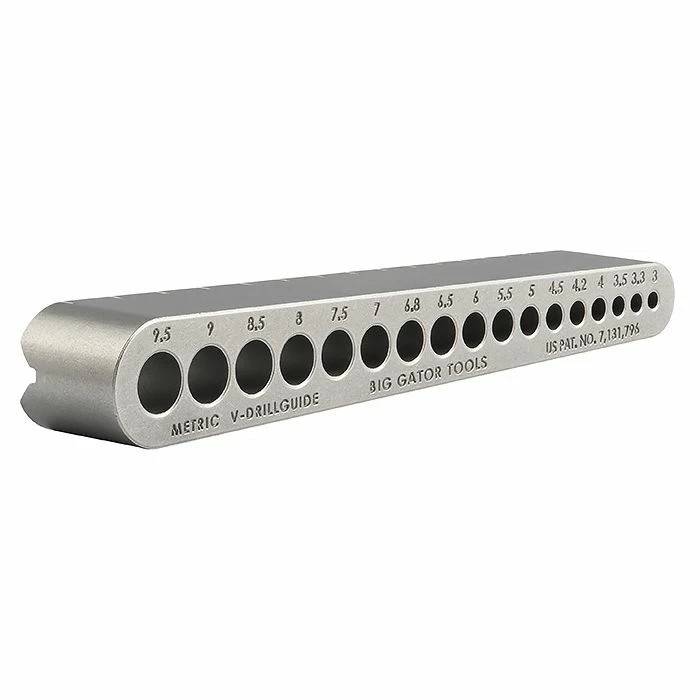

Metric V-DrillGuide® – MDG1000NP
Drill guide is sized for drill bit sizes: 3-9.5mm.  17 drill sizes.  17 drill sizes include: 3, 3.3, 3.5, 4, 4.2, 4.5, 5, 5.5, 6, 6.5, 6.8, 7, 7.5, 8, 8.5, 9, and 9.5mm.
