Cast Aluminum Router Mounting Plate

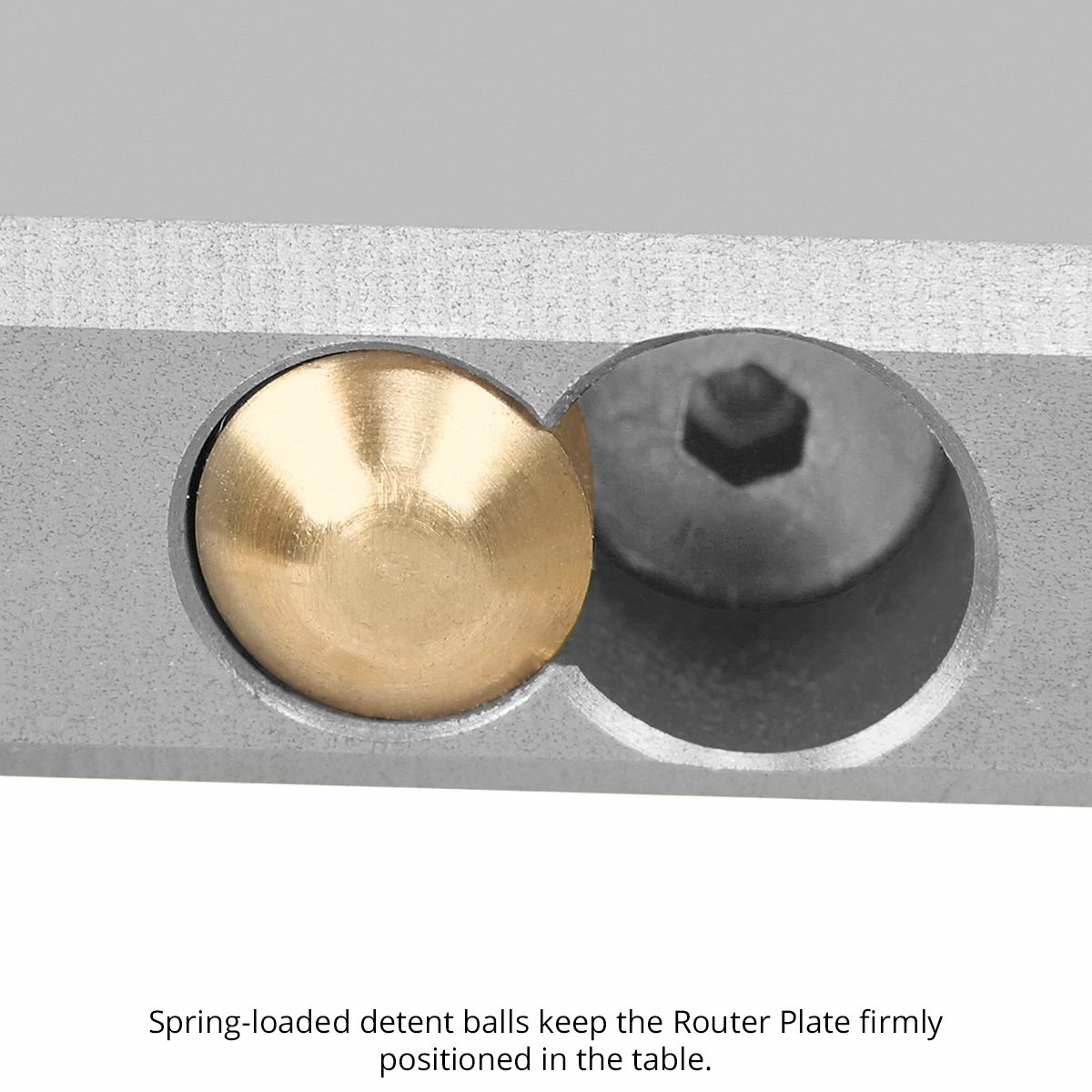

Along with superior materials, each Woodpecker Router Plate features eight top accessible fine pitch leveling screws and two adjustable spring loaded plungers to make it easy to achieve a flush, perfect fit in your router table opening.

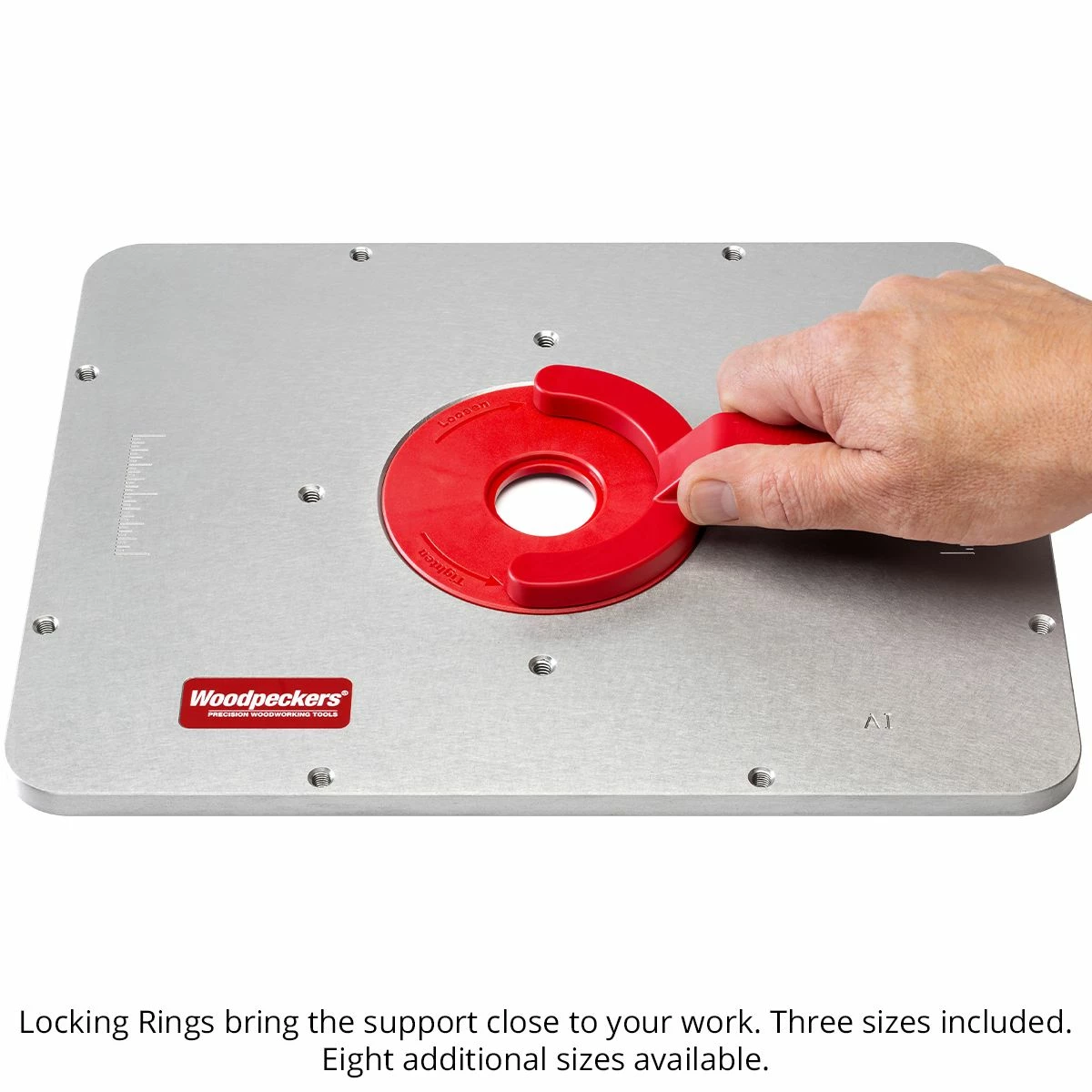

With each Cast Aluminum Router Plate, you also receive (3) TwistLOCK Rings, a steel starting pin, spanner wrench and router mounting screws. The ring opening sizes are 1″, 1-3/16″ and 2-5/8″. The router plate itself has a 3-9/16″ opening to fit any commonly available router bit.

Dimensions: 9-1/4 x 11-3/4 x 3/8 thick.

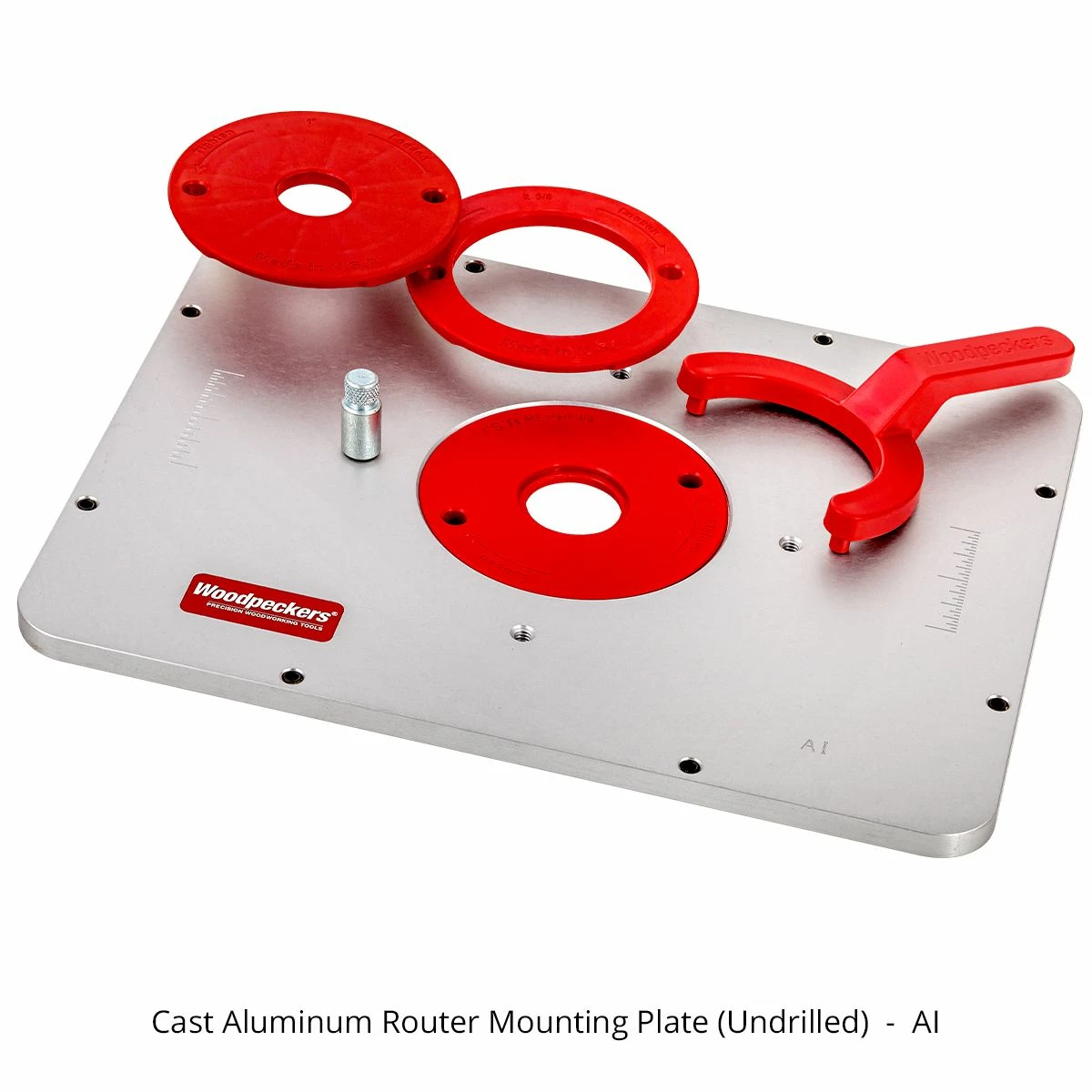

AI	No predrilled mounting hole pattern

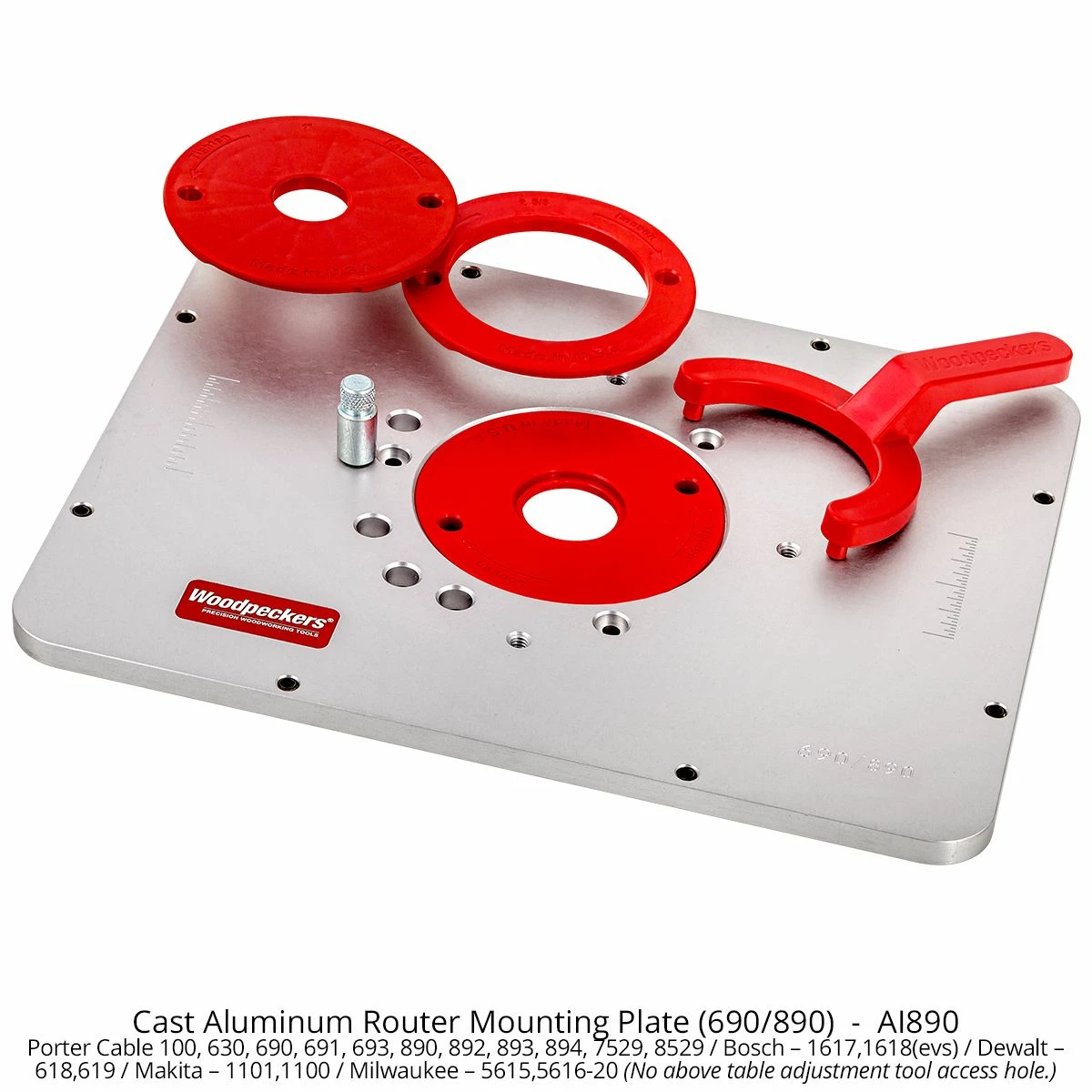

AI890	Fits Porter Cable 100, 630, 690, 890,691, 693, 7529, 8529, Bosch 1617, 1618, Makita 1101, Dewalt 618, 619, Milwaukee 5615, 5616-20 (no above the table adjustment tool hole),

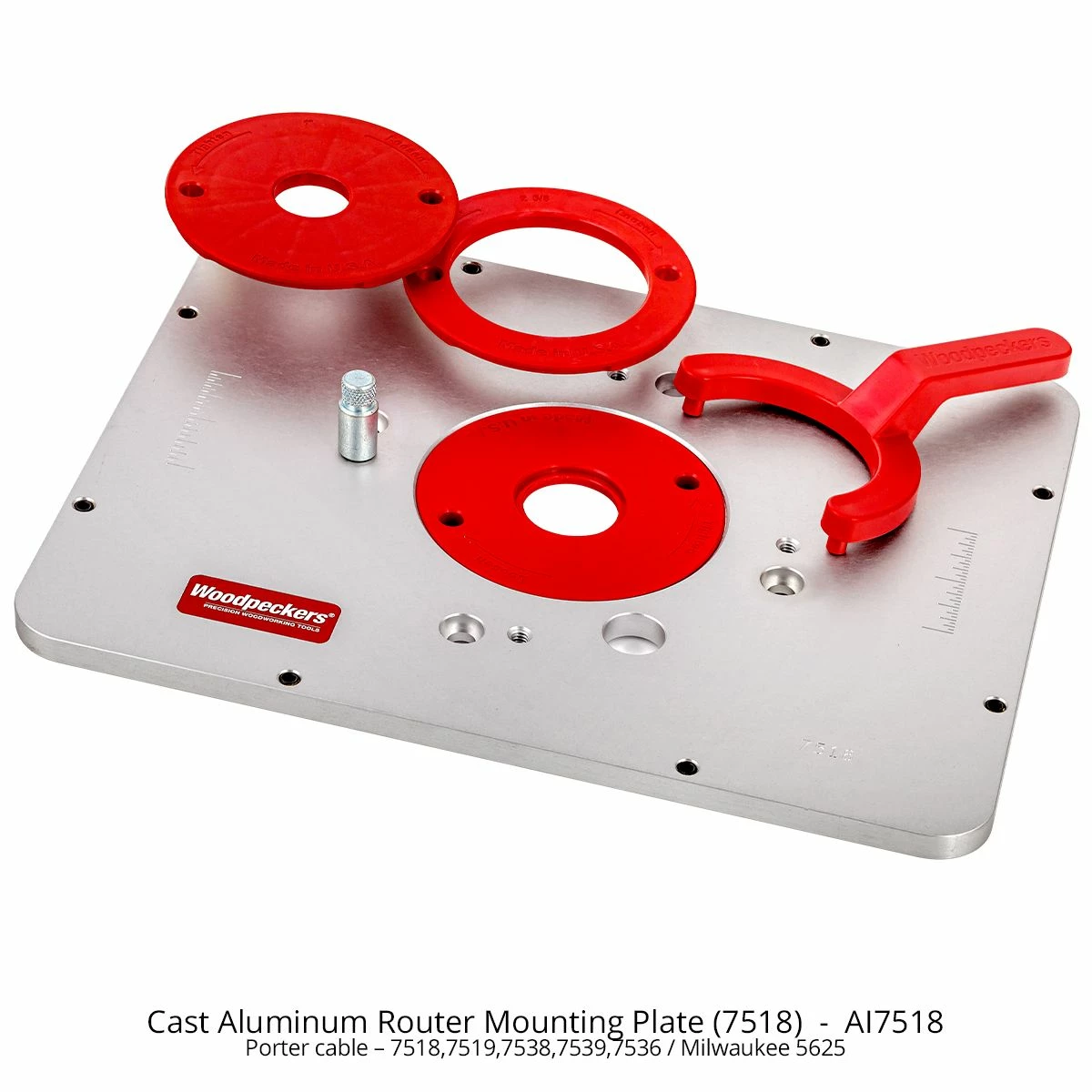

AI7518	Fits Porter Cable 7518, 7519, 7538, 7539, 7536, Milwaukee 5625
AITRITON	Fits Triton TRC-001, MOF-001KC, JOF-001, TRA-001

Included with plate:
• 1
• 1-3/16 Step
• 2-5/8

Available in 8 pc Set (TLRSET-ML)
• Solid
• 3/4
• 7/8
• 1-3/8
• 1-5/8
• 1-7/8”
• 2-1/8”
• 2-3/8”
A separate (8) pc TwistLOCK Ring Set is available with sizes other then the (3) already included with each router plate.
